Module javafx.graphics
Package javafx.scene.effect

Class Reflection

java.lang.Object
javafx.scene.effect.Effect
javafx.scene.effect.Reflection
public class Reflection
extends Effect
An effect that renders a reflected version of the input below the actual input content.

Note that the reflection of a Node with a Reflection effect installed will not respond to mouse events or the containment methods on the Node.

Example:


 Reflection reflection = new Reflection();
 reflection.setFraction(0.7);

 Text text = new Text();
 text.setX(10.0);
 text.setY(50.0);
 text.setCache(true);
 text.setText("Reflections on JavaFX...");
 text.setFill(Color.web("0x3b596d"));
 text.setFont(Font.font(null, FontWeight.BOLD, 40));
 text.setEffect(reflection);

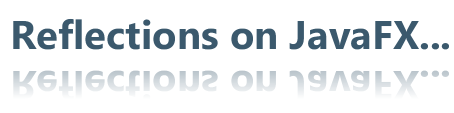

The code above produces the following:

The visual effect of Reflection on text

Since:
JavaFX 2.0

  • Property Details

    • input

      public final ObjectProperty<Effect> inputProperty
      The input for this Effect. If set to null, or left unspecified, a graphical image of the Node to which the Effect is attached will be used as the input.
      Default value:
      null
      See Also:
      getInput(), setInput(Effect)

    • topOffset

      public final DoubleProperty topOffsetProperty
      The top offset adjustment, which is the distance between the bottom of the input and the top of the reflection.
             Min: n/a
       Max: n/a
   Default: 0.0
  Identity: 0.0
      Default value:
      0.0
      See Also:
      getTopOffset(), setTopOffset(double)

    • topOpacity

      public final DoubleProperty topOpacityProperty
      The top opacity value, which is the opacity of the reflection at its top extreme.
             Min: 0.0
       Max: 1.0
   Default: 0.5
  Identity: 1.0
      Default value:
      0.5
      See Also:
      getTopOpacity(), setTopOpacity(double)

    • bottomOpacity

      public final DoubleProperty bottomOpacityProperty
      The bottom opacity value, which is the opacity of the reflection at its bottom extreme.
             Min: 0.0
       Max: 1.0
   Default: 0.0
  Identity: 1.0
      Default value:
      0.0
      See Also:
      getBottomOpacity(), setBottomOpacity(double)

    • fraction

      public final DoubleProperty fractionProperty
      The fraction of the input that is visible in the reflection. For example, a value of 0.5 means that only the bottom half of the input will be visible in the reflection.
             Min: 0.0
       Max: 1.0
   Default: 0.75
  Identity: 1.0
      Default value:
      0.75
      See Also:
      getFraction(), setFraction(double)

  • Constructor Details

    • Reflection

      public Reflection()
      Creates a new instance of Reflection with default parameters.

    • Reflection

      public Reflection​(double topOffset, double fraction, double topOpacity, double bottomOpacity)
      Creates a new instance of Reflection with the specified topOffset, fraction, topOpacity and bottomOpacity.
      Parameters:
      topOffset - the distance between the bottom of the input and the top of the reflection
      fraction - the fraction of the input that is visible in the reflection
      topOpacity - the opacity of the reflection at its top extreme
      bottomOpacity - the opacity of the reflection at its bottom extreme
      Since:
      JavaFX 2.1

  • Method Details

    • setInput

      public final void setInput​(Effect value)
      Sets the value of the property input.
      Property description:
      The input for this Effect. If set to null, or left unspecified, a graphical image of the Node to which the Effect is attached will be used as the input.
      Default value:
      null

    • getInput

      public final Effect getInput()
      Gets the value of the property input.
      Property description:
      The input for this Effect. If set to null, or left unspecified, a graphical image of the Node to which the Effect is attached will be used as the input.
      Default value:
      null

    • inputProperty

      public final ObjectProperty<Effect> inputProperty()
      The input for this Effect. If set to null, or left unspecified, a graphical image of the Node to which the Effect is attached will be used as the input.
      Default value:
      null
      See Also:
      getInput(), setInput(Effect)

    • setTopOffset

      public final void setTopOffset​(double value)
      Sets the value of the property topOffset.
      Property description:
      The top offset adjustment, which is the distance between the bottom of the input and the top of the reflection.
             Min: n/a
       Max: n/a
   Default: 0.0
  Identity: 0.0
      Default value:
      0.0

    • getTopOffset

      public final double getTopOffset()
      Gets the value of the property topOffset.
      Property description:
      The top offset adjustment, which is the distance between the bottom of the input and the top of the reflection.
             Min: n/a
       Max: n/a
   Default: 0.0
  Identity: 0.0
      Default value:
      0.0

    • topOffsetProperty

      public final DoubleProperty topOffsetProperty()
      The top offset adjustment, which is the distance between the bottom of the input and the top of the reflection.
             Min: n/a
       Max: n/a
   Default: 0.0
  Identity: 0.0
      Default value:
      0.0
      See Also:
      getTopOffset(), setTopOffset(double)

    • setTopOpacity

      public final void setTopOpacity​(double value)
      Sets the value of the property topOpacity.
      Property description:
      The top opacity value, which is the opacity of the reflection at its top extreme.
             Min: 0.0
       Max: 1.0
   Default: 0.5
  Identity: 1.0
      Default value:
      0.5

    • getTopOpacity

      public final double getTopOpacity()
      Gets the value of the property topOpacity.
      Property description:
      The top opacity value, which is the opacity of the reflection at its top extreme.
             Min: 0.0
       Max: 1.0
   Default: 0.5
  Identity: 1.0
      Default value:
      0.5

    • topOpacityProperty

      public final DoubleProperty topOpacityProperty()
      The top opacity value, which is the opacity of the reflection at its top extreme.
             Min: 0.0
       Max: 1.0
   Default: 0.5
  Identity: 1.0
      Default value:
      0.5
      See Also:
      getTopOpacity(), setTopOpacity(double)

    • setBottomOpacity

      public final void setBottomOpacity​(double value)
      Sets the value of the property bottomOpacity.
      Property description:
      The bottom opacity value, which is the opacity of the reflection at its bottom extreme.
             Min: 0.0
       Max: 1.0
   Default: 0.0
  Identity: 1.0
      Default value:
      0.0

    • getBottomOpacity

      public final double getBottomOpacity()
      Gets the value of the property bottomOpacity.
      Property description:
      The bottom opacity value, which is the opacity of the reflection at its bottom extreme.
             Min: 0.0
       Max: 1.0
   Default: 0.0
  Identity: 1.0
      Default value:
      0.0

    • bottomOpacityProperty

      public final DoubleProperty bottomOpacityProperty()
      The bottom opacity value, which is the opacity of the reflection at its bottom extreme.
             Min: 0.0
       Max: 1.0
   Default: 0.0
  Identity: 1.0
      Default value:
      0.0
      See Also:
      getBottomOpacity(), setBottomOpacity(double)

    • setFraction

      public final void setFraction​(double value)
      Sets the value of the property fraction.
      Property description:
      The fraction of the input that is visible in the reflection. For example, a value of 0.5 means that only the bottom half of the input will be visible in the reflection.
             Min: 0.0
       Max: 1.0
   Default: 0.75
  Identity: 1.0
      Default value:
      0.75

    • getFraction

      public final double getFraction()
      Gets the value of the property fraction.
      Property description:
      The fraction of the input that is visible in the reflection. For example, a value of 0.5 means that only the bottom half of the input will be visible in the reflection.
             Min: 0.0
       Max: 1.0
   Default: 0.75
  Identity: 1.0
      Default value:
      0.75

    • fractionProperty

      public final DoubleProperty fractionProperty()
      The fraction of the input that is visible in the reflection. For example, a value of 0.5 means that only the bottom half of the input will be visible in the reflection.
             Min: 0.0
       Max: 1.0
   Default: 0.75
  Identity: 1.0
      Default value:
      0.75
      See Also:
      getFraction(), setFraction(double)
