Provides classes for the representation of SMIv1/v2 data types (which also includes some basic ASN.1 primitive data types).

The org.snmp4j.smi classes are capable of BER encoding and decoding themselves to/from a byte stream. In addition, the SMI data type classes provide convenient functions for manipulating their content.

The VariantVariable is a special class that can be used in command responder applications to intercept access to a SMI value.

Variable Binding Examples

import org.snmp4j.smi.*;
...
VariableBinding vb = new VariableBinding(new OID("1.3.6.1.2.1.1.4.0"));
vb.setValue(new OctetString("SNMP4J Text"));
...
vb = new VariableBinding();
vb.setOid(new OID(new int[] { 1,3,6,1,2,1,1,2,0 }));
...
vb = new VariableBinding(vb.getOid(), new IpAddress("255.255.255.255"));
...
vb = new VariableBinding(vb.getOid(), new Gauge32(2^32-1));
int syntax = vb.getSyntax();
if (syntax != SMIConstants.SYNTAX_GAUGE32) {
  // never reached
}
else {
  long value = ((UnsignedInteger32)vb.getValue()).getValue();
  System.out.println(vb.getOid() + " = " + value);
  // prints: 1.3.6.1.2.1.1.2.0 = 4294967295
}
...

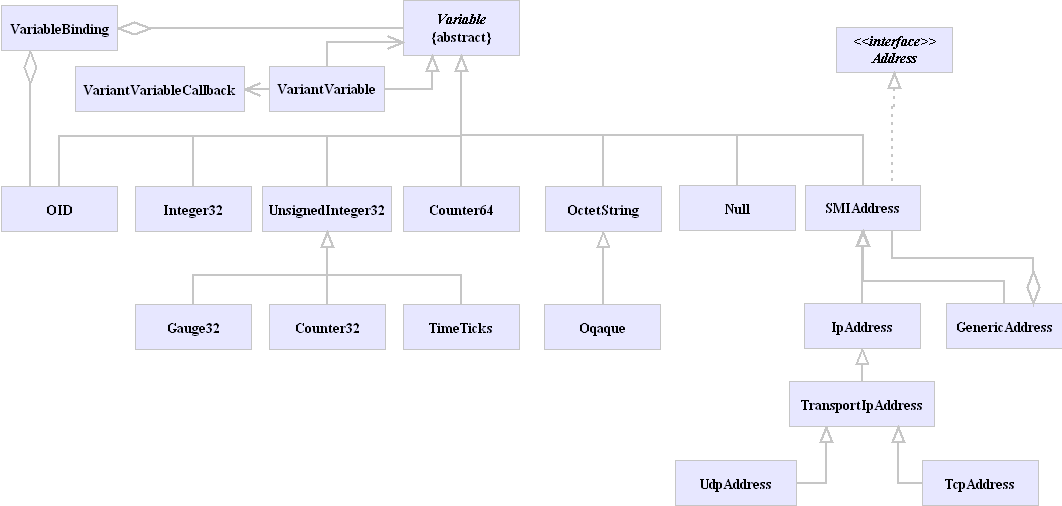

The following UML class diagram shows the most important classes of the org.snmp4j.smi package and their relationships (relationships to other packages are not shown):

Interface Summary
Interface	Description
Address	The `Address` interface serves as a base class for all SNMP transport addresses.
AssignableFromByteArray	The `AssignableFromByteArray` interface describes objects whose value can be set from a byte array and converted back to a byte array.
AssignableFromIntArray	The `AssignableFromIntArray` interface describes objects whose value can be set from an int array and converted back to an int array.
AssignableFromInteger
AssignableFromLong
AssignableFromString
SubIndexInfo	The `SubIndexInfo` interface represents the meta information of a SMI INDEX clause element (= sub-index) which are relevant for converting an OID index value to an INDEX object and vice versa.
Variable	The `Variable` interface defines common attributes of all SNMP variables.
VariantVariableCallback	The `VariantVariableCallback` can be implemented by objects that want to intercept/monitor reading and writing of a `VariantVariable`'s value.

Class Summary
Class	Description
AbstractVariable	The `Variable` abstract class is the base class for all SNMP variables.
BitString	The `BitString` class represents the obsolete SMI type BIT STRING which has been defined in RFC 1442 (an SNMPv2 draft) but which has been obsoleteted by RFC 1902 and RFC 2578.
Counter32	The `Counter32` class allows all the functionality of unsigned integers but is recognized as a distinct SMI type, which is used for monotonically increasing values that wrap around at 2^32-1 (4294967295).
Counter64	The `Counter64` class represents a 64bit unsigned integer type.
DtlsAddress	The `TlsAddress` represents a TLS transport addresses as defined by RFC 5953 SnmpTSLAddress textual convention.
Gauge32	The `Gauge32` class is indistinguishable from `UnsignedInteger32`.
GenericAddress	The `GenericAddress` implements the decorator and factory design pattern to provide a generic address type.
Integer32	The `Integer32` represents 32bit signed integer values for SNMP.
IpAddress	The `IpAddress` class represents an IPv4 address SNMP variable.
Null	The `Null` class represents SMI Null and the derived SMIv2 exception syntaxes.
OctetString	The `OctetString` class represents the SMI type OCTET STRING.
OID	The Object Identifier Class.
Opaque	The `Opaque` class represents the SMI type Opaque which is used to transparently exchange BER encoded values.
ReadonlyVariableCallback	This abstract class helps to implement a `VariantVariableCallback` for a read-only Variable.
SMIAddress	A `SMIAddress` is an address that is defined by the Structure of Management Information (SMI) and can be thereby serialized through the Basic Encoding Rules (BER) used by the SNMP protocol.
SMIConstants	The `SMIConstants` defines the tag values for SMI syntax types.
SubIndexInfoImpl	The `SubIndexInfoImpl` class represents the meta information of a SMI INDEX clause element (= sub-index) which are relevant for converting an OID index value to an INDEX object and vice versa.
TcpAddress	The `TcpAddress` represents TCP/IP transport addresses.
TimeTicks	The `TimeTicks` class represents the time in 1/100 seconds since some epoch (which should be have been defined in the corresponding MIB specification).
TlsAddress	The `TlsAddress` represents a TLS transport addresses as defined by RFC 5953 SnmpTSLAddress textual convention.
TransportIpAddress	The `TransportIpAddress` is the abstract base class for all transport addresses on top of IP network addresses.
UdpAddress	The `UdpAddress` represents UDP/IP transport addresses.
UnsignedInteger32	UnsignedInteger32 type is an SNMP type that represents unsigned 32bit integer values (0 to 4294967295).
VariableBinding	A `VariableBinding` is an association of a object instance identifier (`OID`) and the instance's value (`Variable`).
VariantVariable	The `VariantVariable` provides a decorator for any type of Variable instance, to be able to intercept or monitor variable value modification by using a `VariantVariableCallback`.

Enum Summary
Enum Description

MaxAccess
The MaxAccess enumerates the MAX-ACCESS values of SMIv2 and the deprecated MaxAccess.writeOnly of SMIv1.
